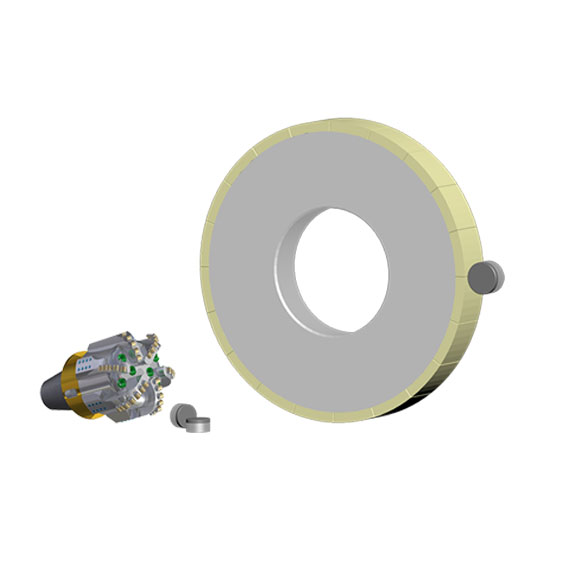

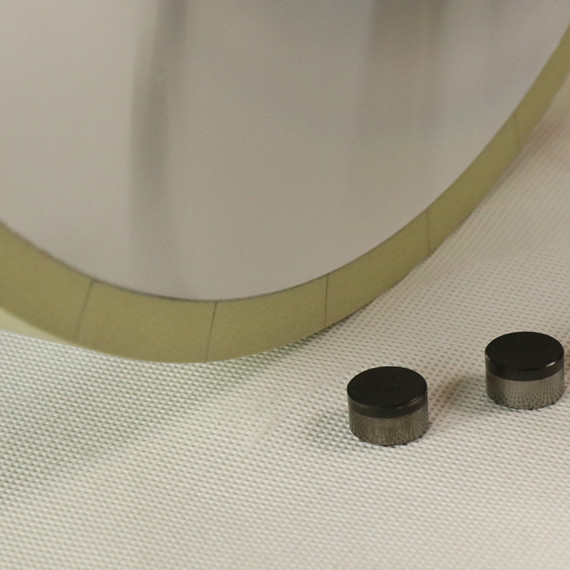

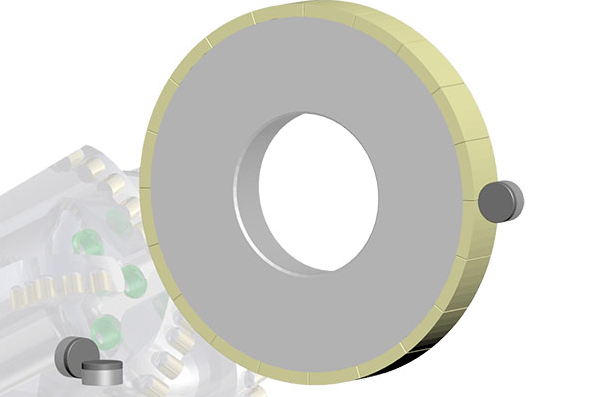

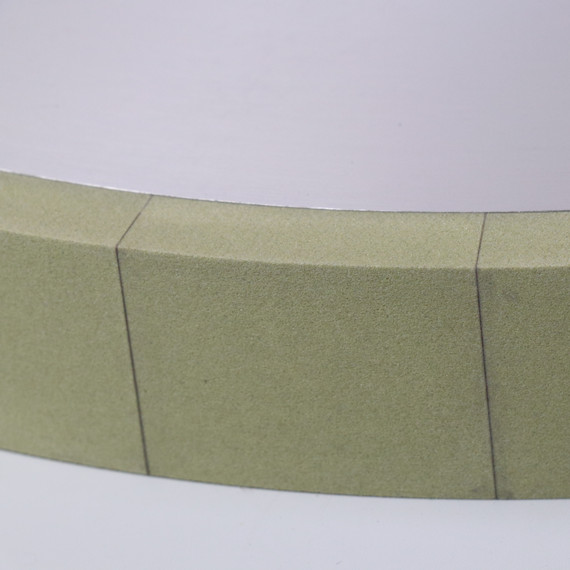

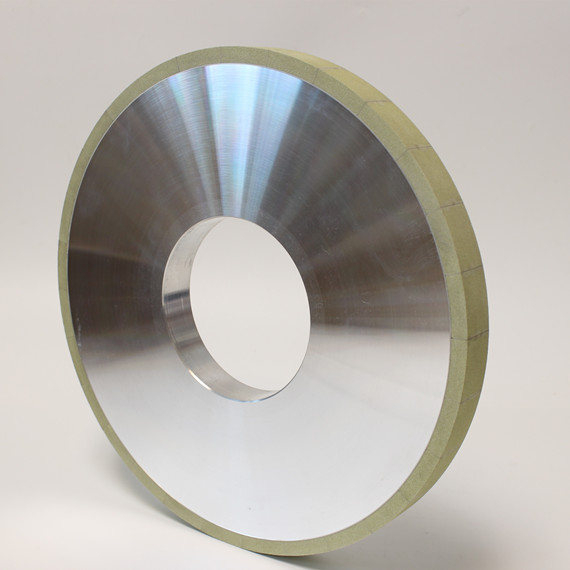

陶瓷平行金刚石砂轮主要用于PDC外圆磨削。
用于粗磨多晶金刚石坯体圆筒的玻璃化金刚石外圆砂轮(PDC切割机)。与树脂金刚石砂轮相比，我们的砂轮降低了35%的磨削成本，节省了每个PDC 40%的磨削时间，提高了PDC的尺寸精度
Model | D (mm) | T (mm) | H (mm) | X (mm) |
1A1 | 350 | 40 | 127 | 10 |
| 400 | 40 50 | 203 | 10 | |
400 | 40 50 | 305 | 10 |

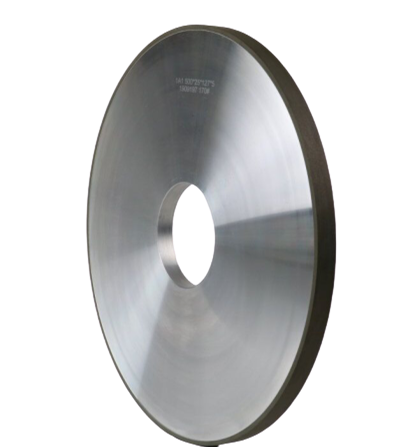

PDC刀具/钻头外圆磨削用树脂金刚石砂轮
| Diameter (mm) | Diameter (inch) | H (mm) | T (mm) | X (mm) |
| 400 | 16 inch | 127 | 25, 50 | 10, 25 |
| 500 | 20 inch | 127, 203.2 | 25, 50 | 10, 25 |
| 600 | 24 inch | 254 | 25, 50 | 10, 16, 25 |
| 750 | 30 inch | 304.8 | 50 | 10 |
| 914.4 | 36 inch | 304.8 | 25, 50 | 10, 25 |
| 1100 | 43 inch | 304.8 | 50 | 10 |
| 其它规格可根据客户要求定做 Email:info@jcbdiamond.com | ||||

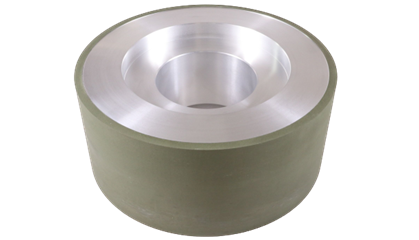

精密磨削用无心磨砂轮PDC
| 型号 | D (mm) | T (mm) | H (mm) | X (mm) |
| 1A1 6A1 9A1 | 300 | 150 | 120 | 5, 10 |
| 350 | 125 | 127 | 5, 10 | |
| 400 | 150 | 203 | 5, 10 | |
| 455 | 205 | 228.6 | 5, 10 | |
| 500 | 150 | 305 | 5, 10 | |
| 650 | 380 | |||
| 砂轮圆跳动≤0.02mm 直线度≤0.02 mm | ||||
