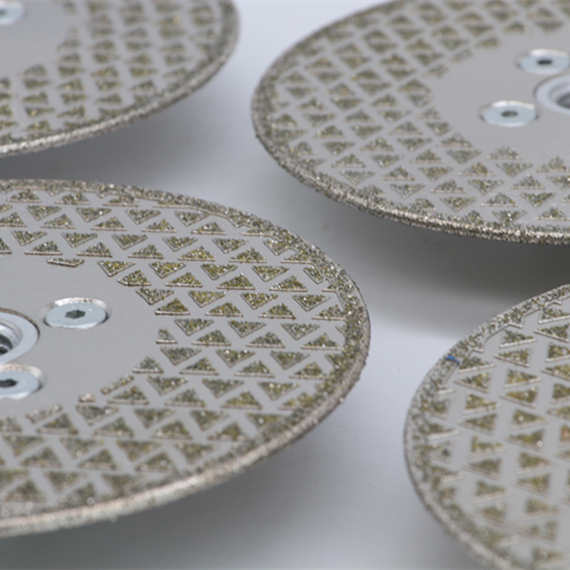

大理石、花岗岩、热硬化塑料、玻璃钢、预烧结预烧(绿色)材料、玻璃纤维、电子碳、石墨、软铁氧体、PVC、pc板等金刚石切割盘

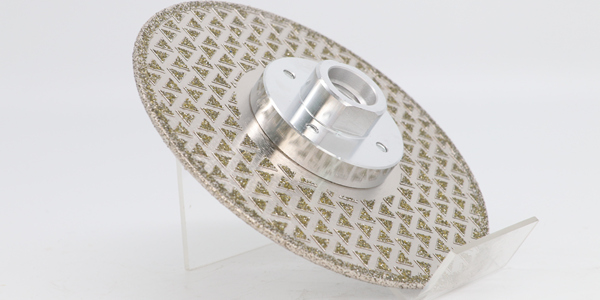

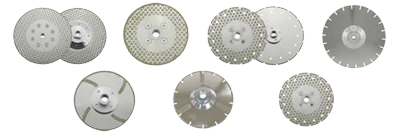

带法兰的单面涂层

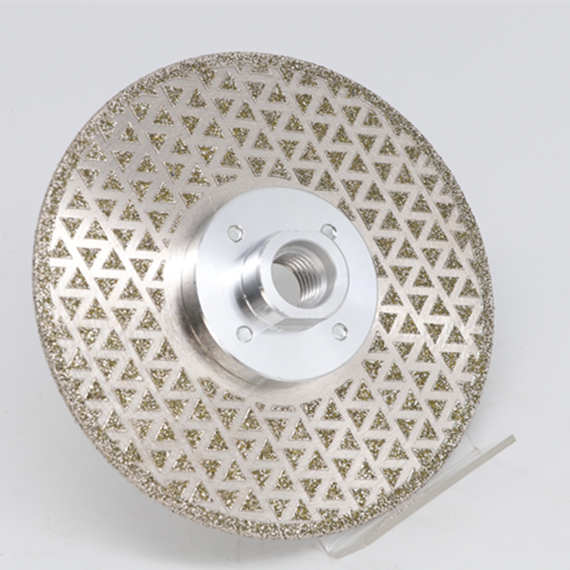

带法兰的双涂层侧板

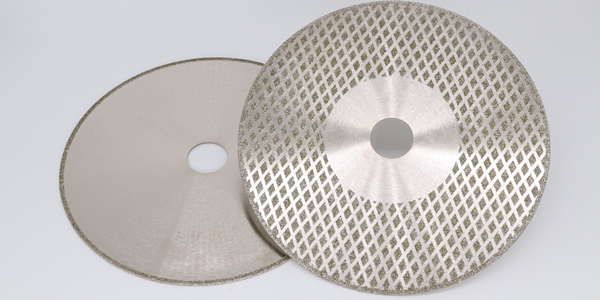

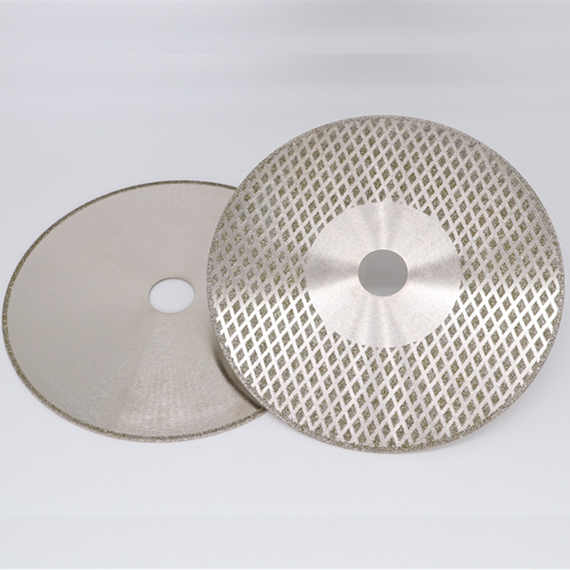

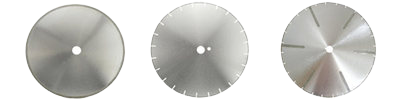

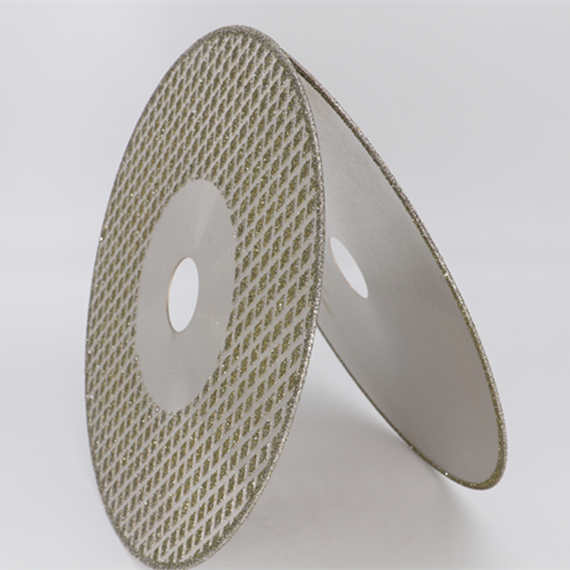

无法兰金刚石切割盘
添加微信好友
*切割效果优于烧结的小金刚石锯片，不会造成断边
*非常锐利的切割性能和产生最小的热量
*连续轮辋切割圆盘提供更平滑的切割玻璃纤维，塑料，瓷砖
*分段边缘切割盘更适合切割大理石、花岗岩和研磨材料

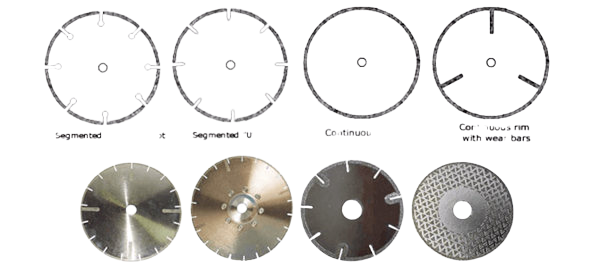

*“键孔”和“U”型槽是分段轮辋常见的槽型
| Outer Diameter |
Arbor hole (mm) |
Thickness of steel core |
Rim |
|
|
12" |
300 mm |
25.4 30 50 |
1.8mm 2mm |
Continuous Segment |
|
14" |
350 mm |
25.4 30 50 |
1.8mm 2mm |
Continuous Segment |
|
16" |
400 mm |
25.4 30 50 |
1.8mm 2mm |
Continuous Segment |
|
18" |
450 mm |
25.4 30 50 |
1.8mm 3mm |
Continuous Segment |
|
20" |
500 mm |
25.4 30 50 |
3.0mm |
Continuous Segment |
| Outer Diameter |
Arbor hole (mm) |
Thickness of steel core |
Rim |
|
|
4" |
100 mm |
22.23 |
1.4mm |
Continuous Segment |
|
4.5" |
115 mm |
22.23 |
1.4mm |
Continuous Segment |
|
5" |
125 mm |
22.23 |
1.4mm |
Continuous Segment |
|
6" |
150 mm |
22.23 |
1.4mm |
Continuous Segment |
| 7" | 180mm | 22.23 | 1.6mm | Continuous Segment |
|
9" |
230 mm |
22.23 |
1.6mm |
Continuous Segment |
| 可根据客户要求制作其他尺寸和型号的金刚石切割锯片。 Email: info@moresuperhard.com | ||||
